This specialized finishing machine enhances printed label rolls with foil stamping and varnishing capabilities, transforming standard labels into premium products.

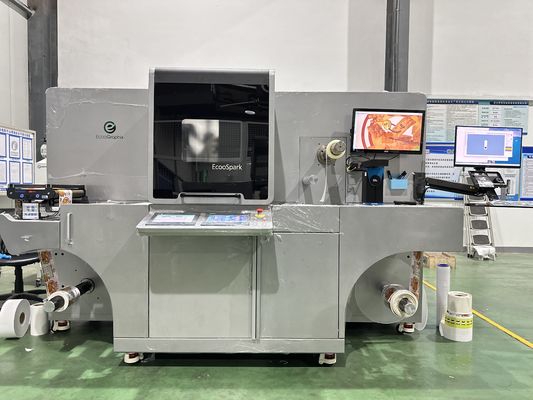

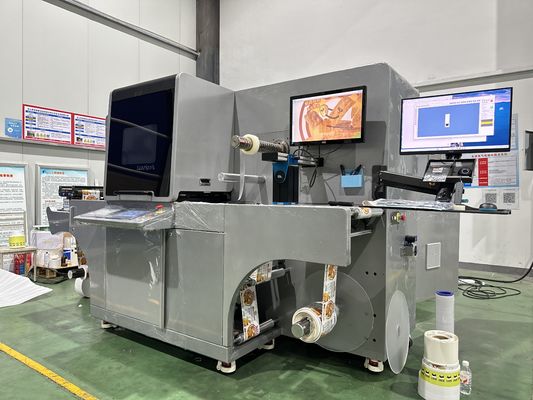

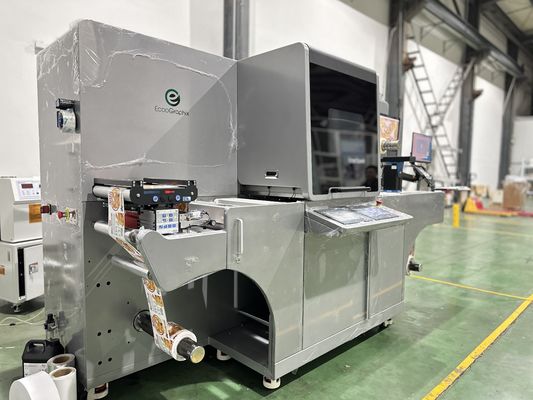

The Ecoospark represents a breakthrough in digital embellishment technology for roll-to-roll label processing. This fully digital system delivers cold foil stamping and precise varnishing using drop-on-demand technology, offering unmatched flexibility and rapid job turnover.
| Effect Type | Example 1 | Example 2 |
|---|---|---|
| Spot varnishing | |
|
| Cold foil stamping | |
|
| 3D embossing | |
|
| Braille | |
|
| Specification | Ecoospark 330 | Ecoospark 288 |
|---|---|---|
| Printing Technology | UV Piezo DoD (drop on demand)-inkjet | |
| Resolution | 360*360 dpi, up to 1440*360 dpi | |
| Printing speed | 10m/min - 60m/min (dependent on polymer layer thickness) | |
| Variable Image system | PDF, optimized PDF, Optional barcode system | |
| Supported image standards | PDF, PDF/VT, TIFF, JPEG, BMP & other database files | |
| Substrates | Offset, Digital, Plastics, Laminated and coated substrates | |
| Printing image width | 330mm * 10m (Length) | 288mm * 10m (Length) |
| Polymer | WB-DS-Clear Polymer | |
| Polymer layer thickness | From 10 up to 200 microns | |
| Ink curing | Inter UV-LED Pre-curing/Full curing by UV-LED | |
| Unwinder diameter | Max. 700mm, Core 76mm | |
| Rewinder diameter | Max. 700mm, Core 76mm | |
| Substrates thickness | 30-400 micron | |
| Substrates width | Max 330mm | Max. 288mm |
| Press with Foil station | Machine dimensions (L*H*W): 3500mm*1900mm*1800mm | |
| Operating environment | Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity | |
| Electrical requirements | Voltage: 3*380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps | |
| Weight | 3000kg | 2700kg |
